Proxy 4K HDMI
5 IN to 1 out
Switch
features

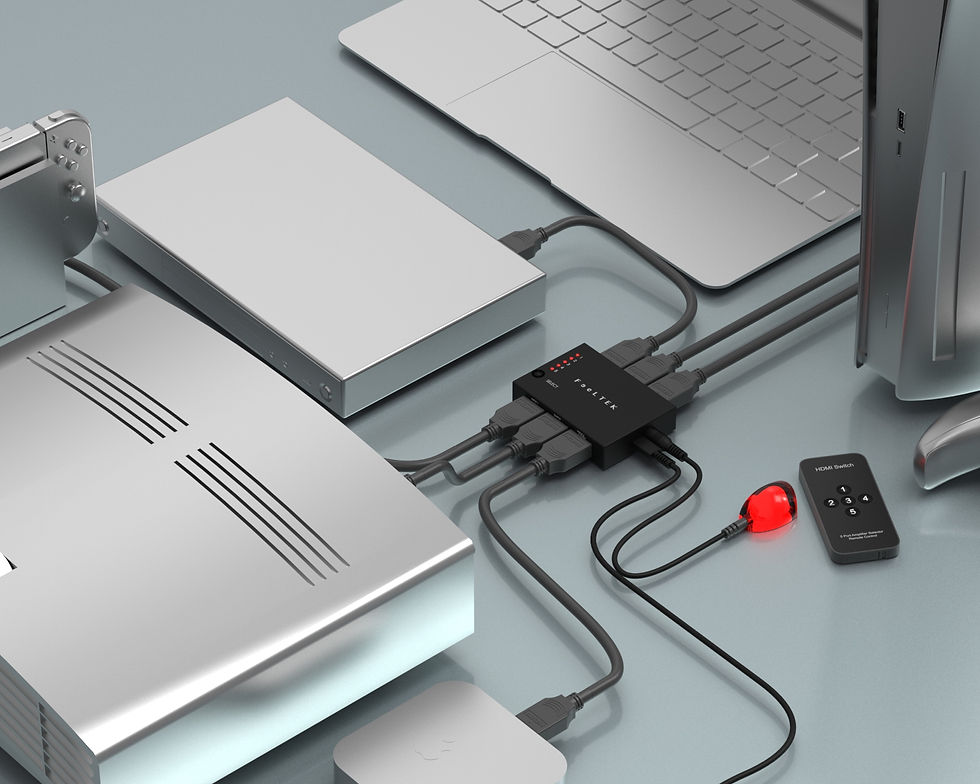

．Easily connect 5 HDMI source devices to 1 display output.
．Supports UHD 4K@60Hz resolution and compatible with 4K@30Hz, 2K@120Hz, 1080P, 720P, etc.
．18Gbps bandwidth, compatible with HDMI 2.0/1.4 standards, featuring VRR, dynamic HDR/3D, and audio/video formats like LPCM, Dolby-AC3, DTS7.1, DSD, Dolby TrueHD, DTS-HD, etc.
．Controlled remotely with an infrared remote or manually switch between 5 devices using the button on the unit.
．Ideal for business or personal use, and widely compatible with most devices, such as laptops, projectors, monitors, TV boxes, surveillance systems, Blu-ray players, gaming consoles, etc.
．External power supply design ensures stable transmission and optimized performance, with 5 source indicator lights.
spec
Model No. : HUCS51H42F
Connector Interface (Input)： HDMI Female x5
Connector Interface (Output)：HDMI Female x1
Max. Resolution：HDMI up to 4K@60Hz
LED Indicator : Yes
Power Supply : MicroUSB Port x1(5V/1A)
Receiver & Controller Sensor : IR(Infrared)
Battery : CR2025 Coin Battery
Dimensions：Switch : 82mm * 52mm * 18mm; Controller : 40mm * 86mm * 5mm
Weight： 95g +/- 5g
Warranty：24 Months
Package Includes : Proxy 4K HDMI 5 IN to 1 out Switch x1, IR Receiver x1,Remote Controller x1, USB-A to MicroUSB Cable x1
Specifications
The proxy switch features 5 HDMI input ports and one HDMI output port, making it easy to switch between source devices and providing a fully upgraded multi-functional user experience.
Each output/input port provides up to 4K@60Hz resolution, ensuring clear and vivid video and audio output even through adapters.
The device is equipped with overcurrent protection and has passed international safety certifications and inspections.
The proxy switch features 5 HDMI input ports and one HDMI output port, making it easy to switch between source devices and providing a fully upgraded multi-functional user experience.
